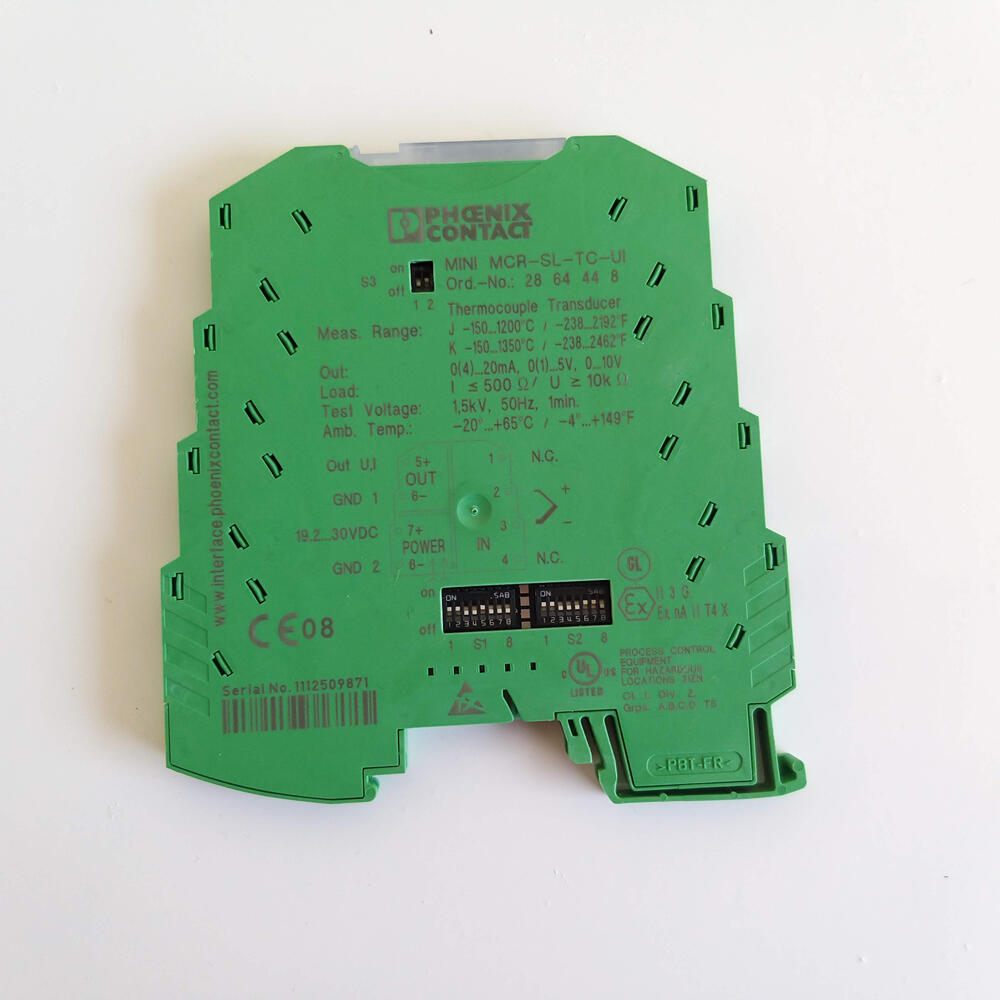

Item:thermocouple transducer

Brand:Phoenix Contact

Model:2864448

Type: MINI MCR-SL-TC-UI

Specs:

MCR temperature transducer for thermocouples, can be configured via DIP switches, with screw connection, order configuration

The 6.2 mm wide MINI MCR-SL-TC-UI... is a configurable, 3-way isolated temperature transducer. It is suitable for the connection of type J and type K thermocouples according to IEC 60584-1.

The standard analog signals 0...20 mA, 4...20 mA, 0...10 V, 0...5 V, 1...5 V, 10...0 V, 20...0 mA or 20...4 mA are available electrically isolated on the output side.

The DIP switches, which can be accessed on the side of the housing, can be used to configure the following parameters:

- Sensor type

- Temperature range to be measured

- Cold junction compensation on/off

- Output signal

- Type of error evaluation

https://www.phoenixcontact.com/online/portal/pi?uri=pxc-oc-itemdetail:pid=2864448&library=pien&tab=1

Condition:Used
