Temperature Control, A350 On-Off Temperature Control Series

Item A350AA-1C

Electronic Temp Control

Range-30/130 F 1/30 Adj 24Vac

Input 10Amp Out

A350 On-Off Temperature Control Series Information

5-Pin Connectors Eliminate Wiring Between Modules

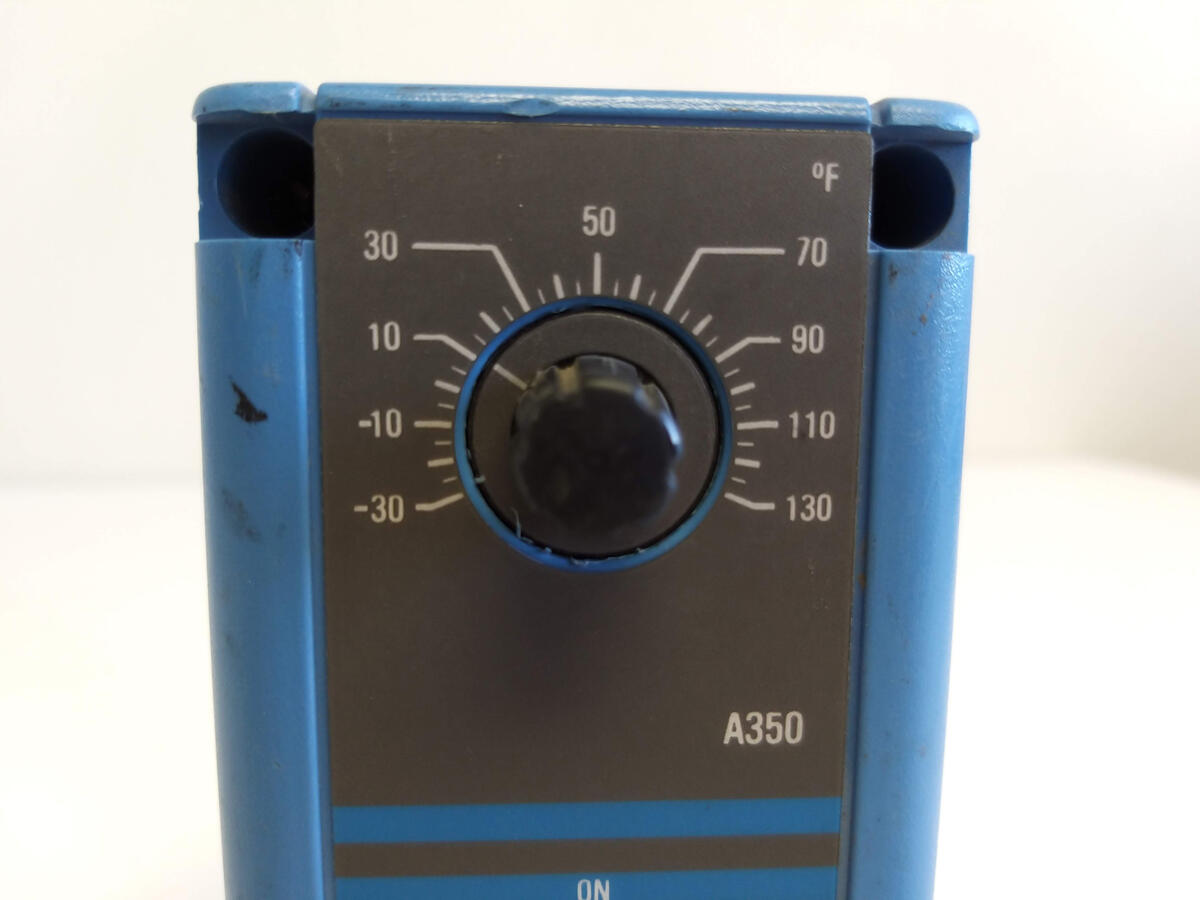

Adjustable Setpoint and Differential

Field Selectable Heat/Cool Mode

Surface or DIN Rail Mounting

LED Indication of Relay Status

The A350A/B Series are On/Off temperature controls with a SPDT relay output and LED indication. These controls are used in conjunction with the A99B Series (PTC silicon) Temperature Sensors. Two basic models cover a temperature range of -30 to 250°F with an adjustable differential of 1 to 30F°. A350A controls incorporate Fahrenheit scales; the A350B models have Celsius scales. The S350 Stage, D350 Display, and Y350R Power Modules can be used with the A350A/B.

Applications:

Frozen/Refrigerated Food Cases

Space Temperature Control

Cooling Tower Control

Beverage Coolers

Chiller Staging

Used, good conditions
