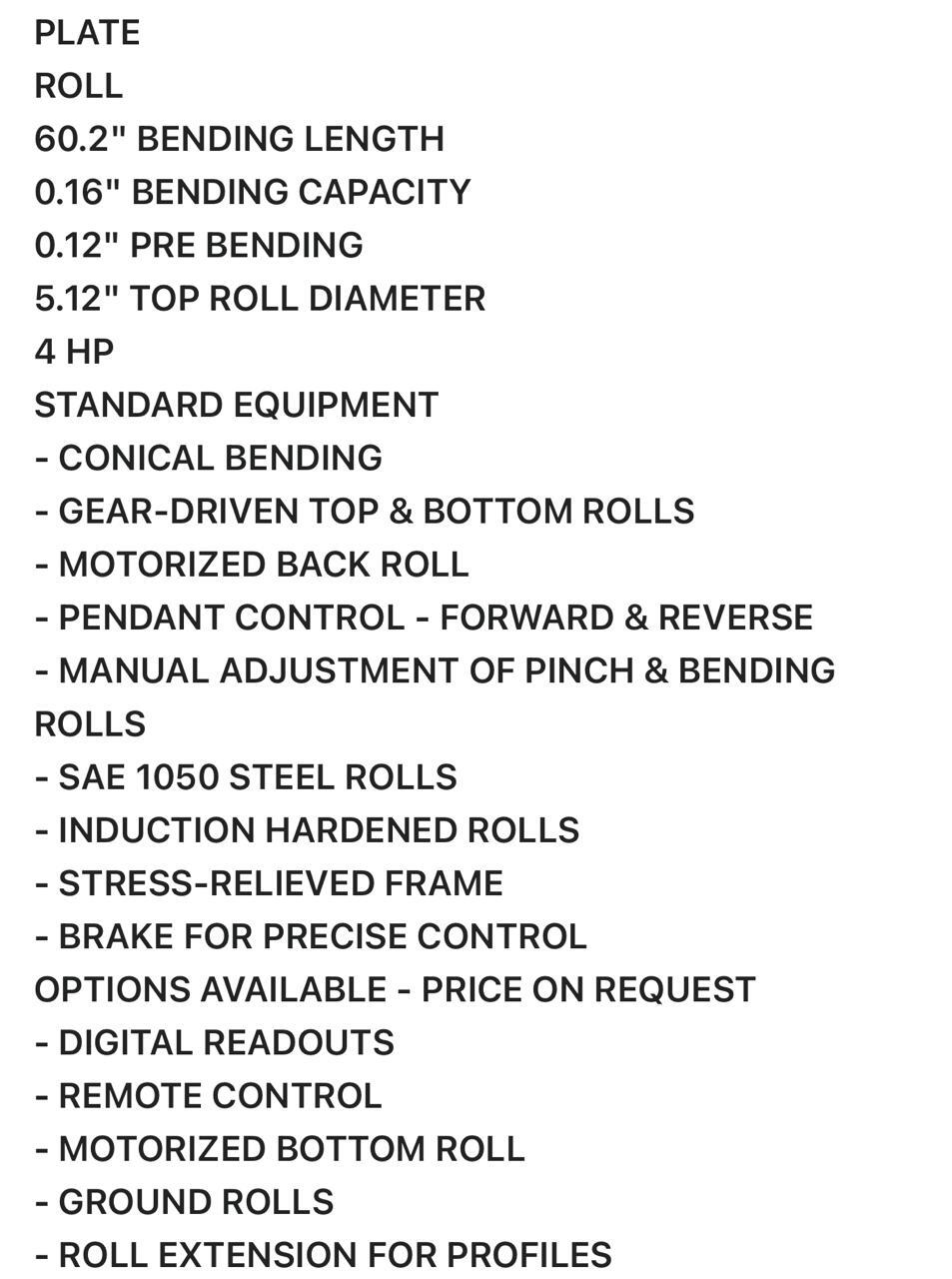

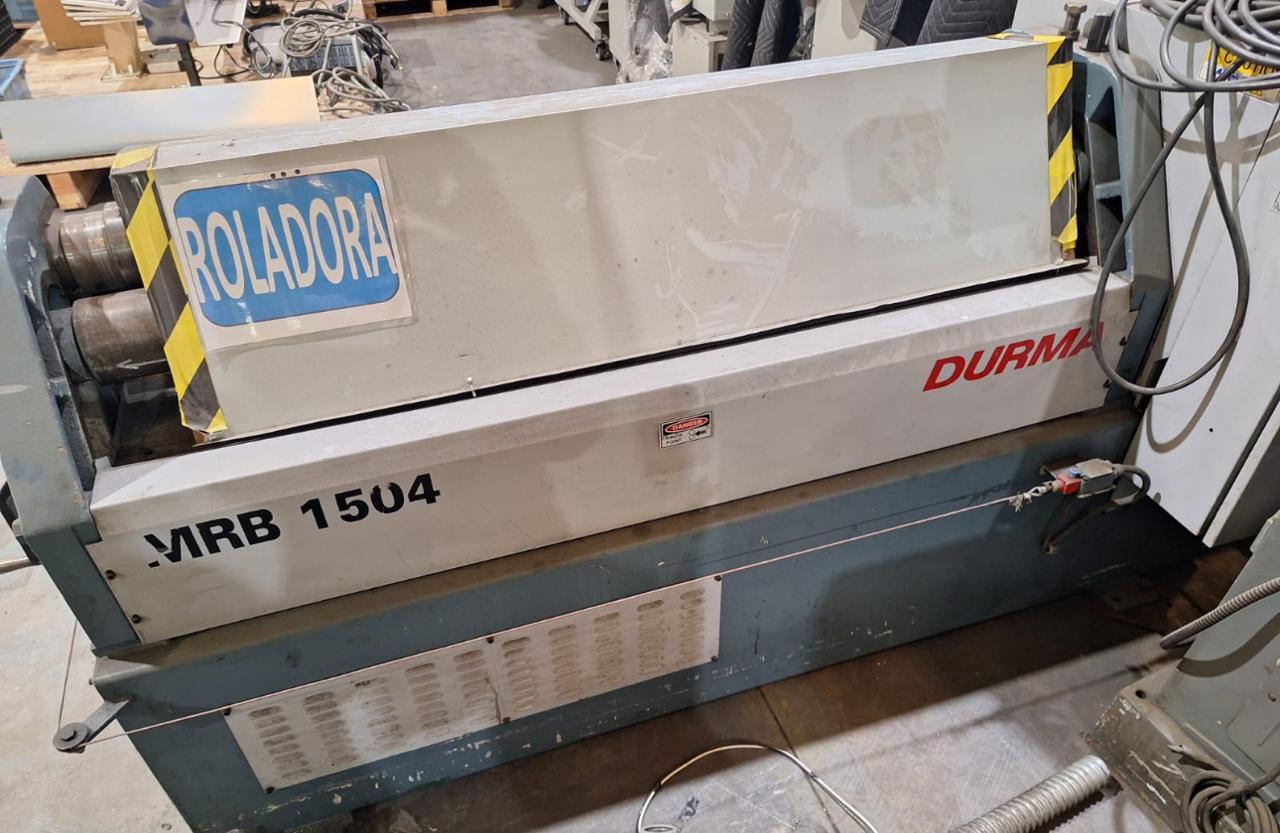

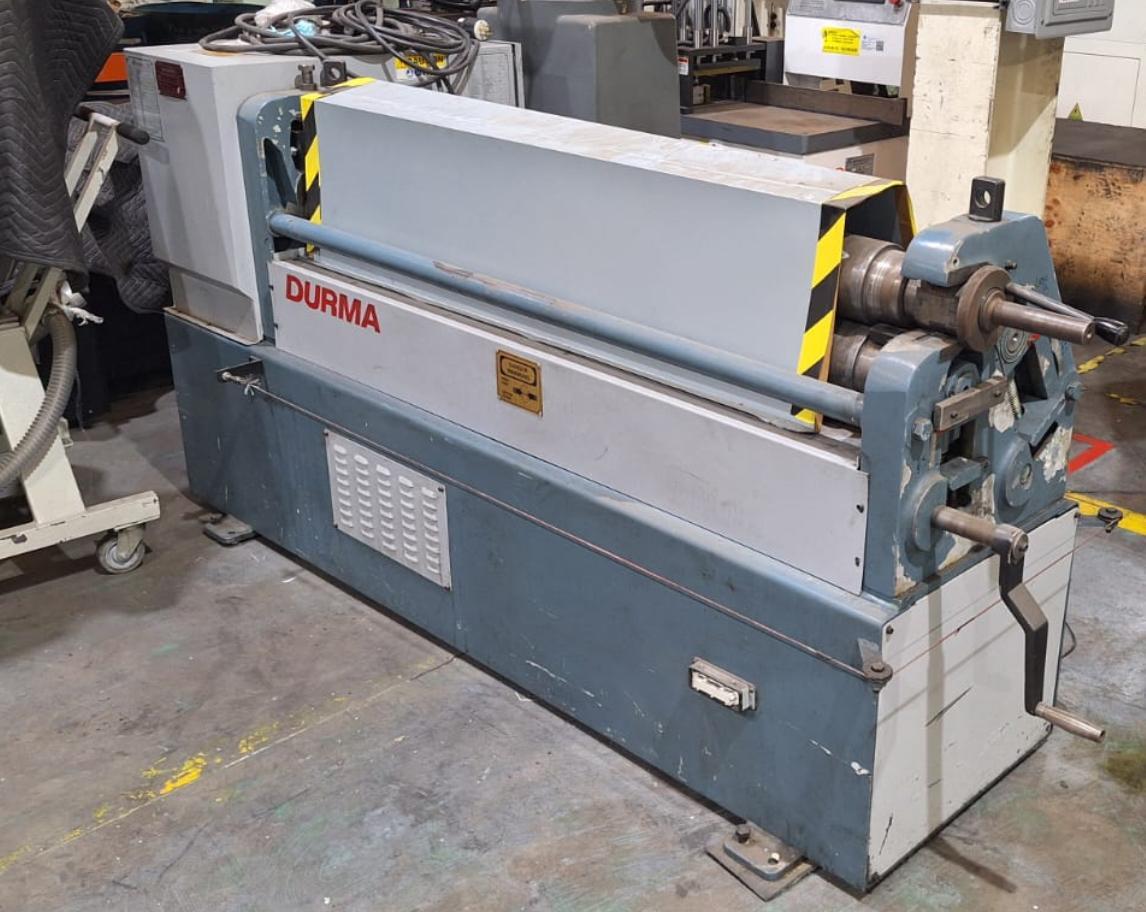

Technical Specifications of Sheet Metal Bending Machine.

Basic Capacities:

Bending Length: 60.2 inches

Bending Capacity: 0.16 inches

Pre-Bending: 0.12 inches

Top Roller Diameter: 5.12 inches

Motor Power: 4 HP

Standard Features:

Taper Bending: Allows bending of parts with variable radius.

Gear Driven Upper and Lower Rollers: Provide precise, synchronized movement.

Motorized Rear Roller: Facilitates positioning and advancement of the sheet metal.

Pendant Control: Allows easy and intuitive operation of the machine, both clockwise and counterclockwise.

Manual Adjustment of Pinch and Bending Rollers: Offers flexibility for different types of parts.

SAE 1050 Steel Rollers: Ensure durability and wear resistance.

Induction Hardened Rollers: Improve service life and bending accuracy.

Stress Relieved Structure: Increases rigidity and reduces deformations.

Precise Control Brake: Allows fine adjustments in the bending process.

Digital Readouts: Provides accurate measurements of bending parameters.

Remote Control: Allows the machine to be operated from a safe distance.

Motorized Bottom Roller: Increases process automation.

Ground Rolls: Improve the surface quality of the bent parts.

Profile Roller Extension: Allows working with parts of different dimensions.
