Global Properties

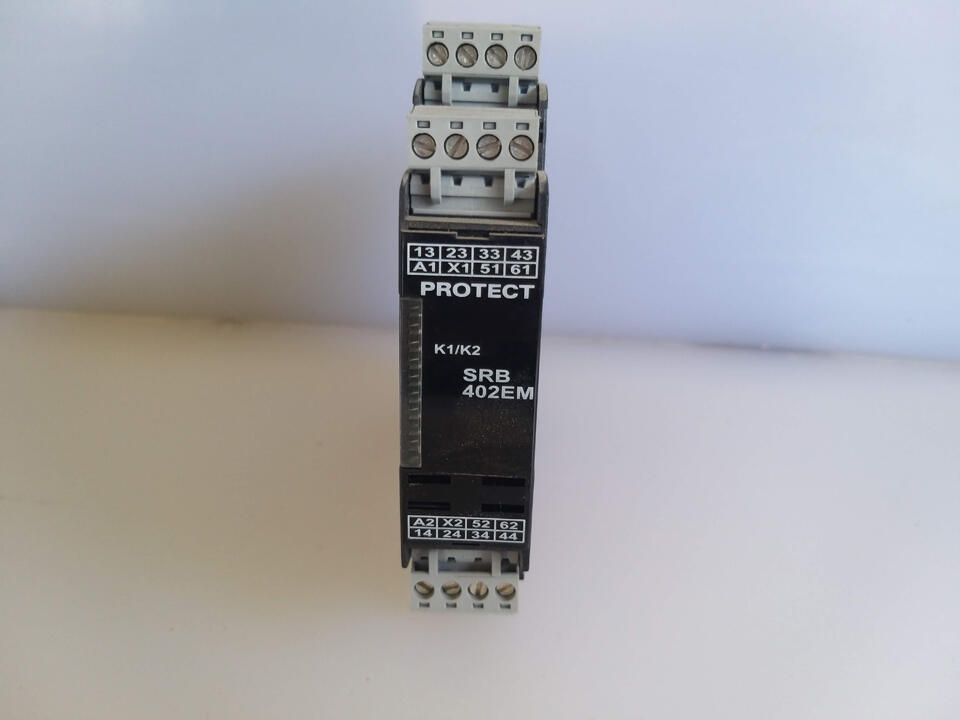

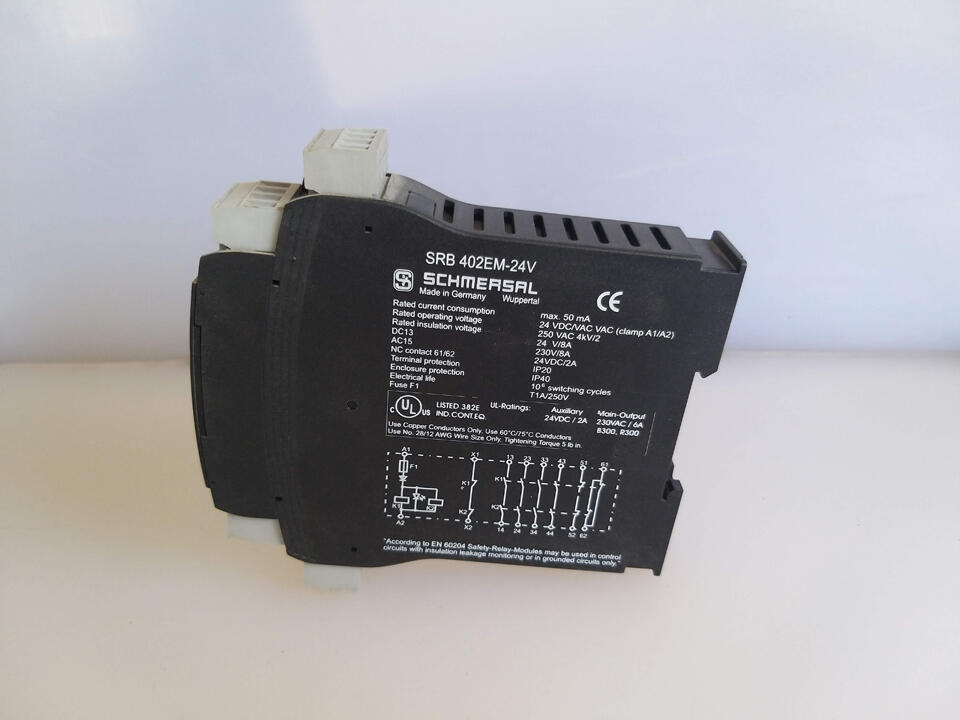

Permanent lightSRB402EM

StandardsEN 60204-1, EN 60947-5-1, EN ISO 13849-1, IEC 61508

Compliance with the Directives (Y/N) Yes

Climatic stressEN 60068-2-78

Mountingsnaps onto standard DIN rail to EN 60715

Terminal designationsIEC/EN 60947-1

Materials

- Material of the housingsPlastic, glass-fibre reinforced thermoplastic, ventilated

- Material of the contactsAgSn0, self-cleaning, positive action

Weight250

Start conditionsAutomatic

Start input (Y/N)No

Feedback circuit (Y/N)Yes

Start-up test (Y/N)No

Reset after disconnection of supply voltage (Y/N)No

Automatic reset function (Y/N)Yes

Reset with edge detection (Y/N)No

Pull-in delay

- ON delay with automatic starttyp. 30 ms / max. 45 ms

Drop-out delay

- Drop-out delay in case of emergency stoptyp. 25 ms / max. 35 ms

Mechanical data

Connection typeScrew connection

Cable section

- Min. Cable section0,25

- Max. Cable section2.5

Pre-wired cablerigid or flexible

Tightening torque for the terminals0,6

Detachable terminals (Y/N)Yes

Mechanical life10.000.000 operations

Electrical lifetimeDerating curve available on request

restistance to shock30 g / 11 ms

Resistance to vibration To EN 60068-2-610…55 HZ, Amplitude 0,35 mm, ± 15 %

Resistance to vibration To EN 60068-2-610…55 HZ, Amplitude 0,35 mm, ± 15 %

Used, good conditions
