Brand Showa

Item Automatic Gear Pump

The Showa MLA-03W gear pump is used with Piston Distributors to distribute oil at a cyclic or intermittent rate.

Unit require an external timing device.

This unit allows you to inject lubricant at a frequency you desire.

This type of pump also comes with a pressure relief mechanism.

These pumps can be sold as a complete unit including (reservoir, pressure gauge, float switch, etc.) or as a pump & motor combination.

MLA03W 0.3 liters/min

Motor Voltages: 3-PH 200/220V is Standard

(optional 100/110V & 400/440V)

100/110V, 1-PH, 50/60 Hz

200/220V, 1-PH, 50/60 Hz

200/220V, 3-PH, 50/60 Hz

400/440V, 3-PH, 50/60 Hz

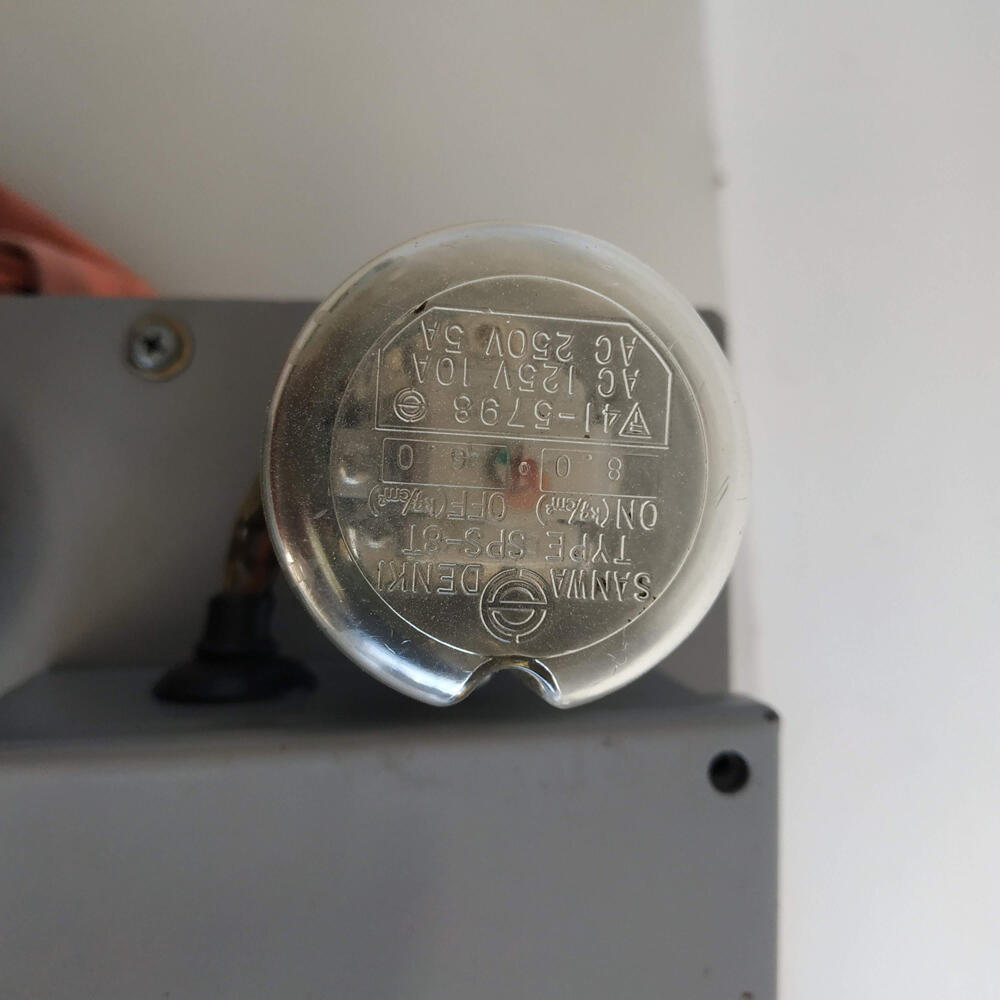

Low Level Switch (optional)

Notice: Suction Filter should be replaced every 6 months or less.

MLA Filter Part Number: F/1101

Specs

Model Number MLA03W

Discharge Pressure (kgf/cm2) 15 (1.5MPa)

Theory Rate (cc/R) 0.2

Discharge Volume (l/min) 50Hz 0.28 60Hz 0.33

Oil Viscosity 20-1000

Motor WxP 25x4

Current Rate (A) 200V(50Hz) 0.29 200V(60Hz) 0.25 220V(60Hz) 0.27

Reservoirs:

TY-12P

Aluminum (12 Liters)

Length 370 x Depth 237 x Height 147

Used, good conditions
