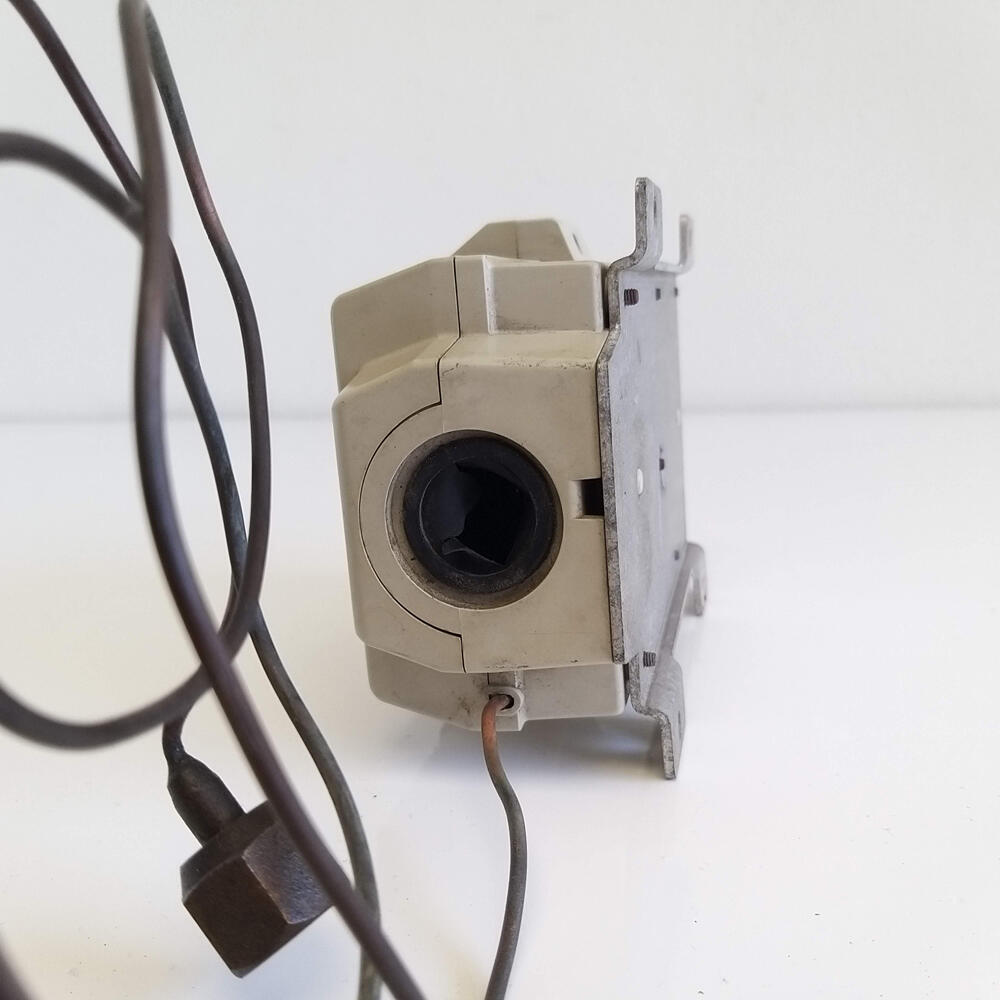

Item Fan Speed Controller

Type RGE-Z1N4-6

Brand SAGINOMIYA

- “All in one” : pressure sensor and fan speed control

- Teliable sensing mechanism using bellows

- Simple to install and easy setting

- Multi-refrigerants : R22/ R407C/R404A/R134a and R410A

- Weather-proof (IP54)

- CE/ EMC approved

TECHNICAL DATE

Single-phase version: cut-off or minimum speed function selectable with changeover switch at approx. 45% of the maximum effective output

Code number 061H3014

Catalog No. RGE-Z1N4-6

Factory Set (Bar) 19

Refrigerant R22, R407C, R404C

Adjusting range* (bar) 8-28

Proportional band** (bar) 4

Electrical motor rating (A) 0,2-4

Power supply 230V 60Hz

Ambient temp. (Celsius) -20 to 50

* Adjusting range: pressure at which the control delivers 95% output effective power supply (VRMS) corresponding

to maximum speed operation of the fan.

**Proportional pressure band where effective voltage corresponds to the minimum speed or causes cut-off operation.

Used, good conditions
